- additional characteristics
- RGB strip connector есть
- Form factor ATX
- CPU power connector 8-pin + 8-pin
- Main power connector 24-pin
- Cooling system type пассивное
- Peculiarities SATA RAID, Слот M.2 2230 Key-E для WiFi модуля (занят), восстановление BIOS, поддержка UEFI
- Application area игровая
- Memory/Processor
- RAM operating mode двухканальный, двухканальный режим
- Maximum memory capacity 128 ГБ
- Maximum memory frequency 5600 МГц
- Memory type DDR5 DIMM, DDR4, DDR5, DIMM DDR5
- Number of memory slots 4
- Built-in processor нет
- Number of sockets 1
- Supported processors Intel Core Processors/Pentium Gold and Celeron Processors
- Socket LGA1700
- CPU manufacturer Intel
- Chipset
- SLI/CrossFire support CrossFire X
- Chipset name Intel Z790
- Chipset manufacturer Intel
- Expansion slots
- Number of PCI-E x1 slots 1
- Number of PCI-E x16 slots 2
- PCI Express support 3.0, 4.0, 5.0, 3.0, 5.0
- Drive controllers
- The operating mode is SCSI RAID нет
- M.2 slot type М, 2280/2260
- interface type M.2 PCI-E
- Number of M.2 slots 5
- SATA RAID operating mode 0, 1, 5, 10
- SATA RAID chip Intel Z790
- Number of SATA 6Gb/s connectors 6
- Total number of SATA connectors 6
- IDE controller нет
- Net
- Wireless interfaces Bluetooth, Wi-Fi 802.11a/b/g, Wi-Fi 802.11ac, Wi-Fi 802.11ax, Wi-Fi 802.11n, 802.11ax Wi-Fi 6E + Bluetooth, Bluetooth, Wi-Fi 802.11ax
- Ethernet chipset Intel I225-V
- Ethernet controller 2.5 Гбит/с
- Audio/Video
- Sound scheme 7.1
- Sound chip Realtek ALC4080
- Sound chip manufacturer Realtek
- Sound HDA
- I/O connectors
- Internal connectors питания процессора 8-pin + 8-pin, поддержка PCI-E 3.0, поддержка PCI-E 4.0, поддержка PCI-E 5.0, разъем для подключения TPM-модуля, разъем для подключения ленты RGB, разъем питания 24-pin

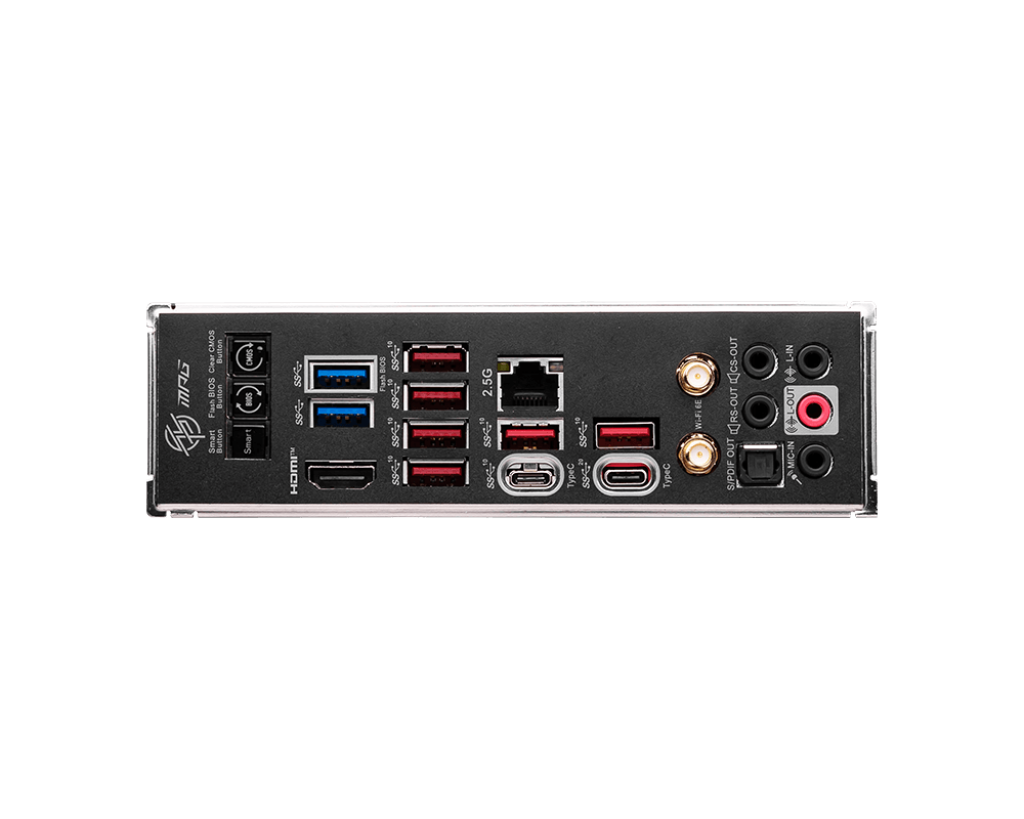

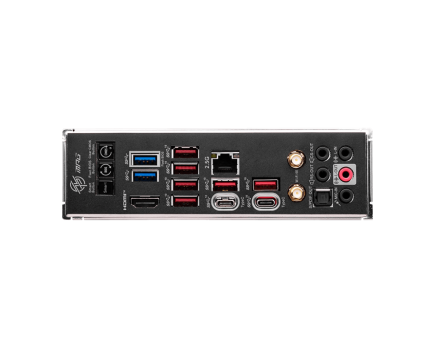

- Rear connectors HDMI, LAN RJ-45, USB 3.2 Gen1 Type-A x 2, USB 3.2 Gen1 Type-C x2, USB 3.2 Gen2 Type-A x 2, USB 3.2 Gen2 Type-A x 4, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, USB 2.0 x2
- Brand MSI
