- additional characteristics
- Form factor microATX
- CPU power connector 8-pin
- Main power connector 24-pin
- Cooling system type пассивное
- Peculiarities поддержка Hyper-Threading, поддержка UEFI, Двухканальный режим памяти, поддержка UEFI, Двухканальный режим памяти
- Application area игровая
- Дополнительная информация Нет
- Memory/Processor
- RAM operating mode двухканальный, двухканальный режим
- Maximum memory capacity 64 ГБ
- Maximum memory frequency 3200 МГц
- Memory type DDR4 DIMM, DDR4
- Number of memory slots 2
- Built-in processor отсутствует
- Number of sockets 1
- Supported processors Intel12th Gen Core/Pentium Gold/Celeron
- Max. CPU TDP 150 Вт
- Socket LGA1700
- CPU manufacturer Intel
- Chipset
- SLI/CrossFire support нет
- Chipset name Intel H610
- Chipset manufacturer Intel
- Expansion slots
- Number of PCI-E x1 slots 1
- Number of PCI-E x16 slots 1
- PCI Express support 3.0, 4.0, 3.0, 4.0
- Drive controllers
- M.2 slot type Key M, 2242/2260/2280
- interface type M.2 PCI-E 4.0/3.0
- Number of M.2 slots 1
- SATA RAID operating mode нет
- Number of SATA 6Gb/s connectors 4
- Total number of SATA connectors 4
- IDE controller нет
- Net
- Wireless interfaces без Wi-Fi
- Ethernet chipset Realtek RTL8111H
- Ethernet controller 1000 Мбит/с
- Audio/Video
- Sound scheme 7.1
- Sound chip Realtek ALC897
- Sound chip manufacturer Realtek
- Sound HDA
- I/O connectors
- Internal connectors поддержка PCI-E 3.0, поддержка PCI-E 4.0, разъем питания 24-pin

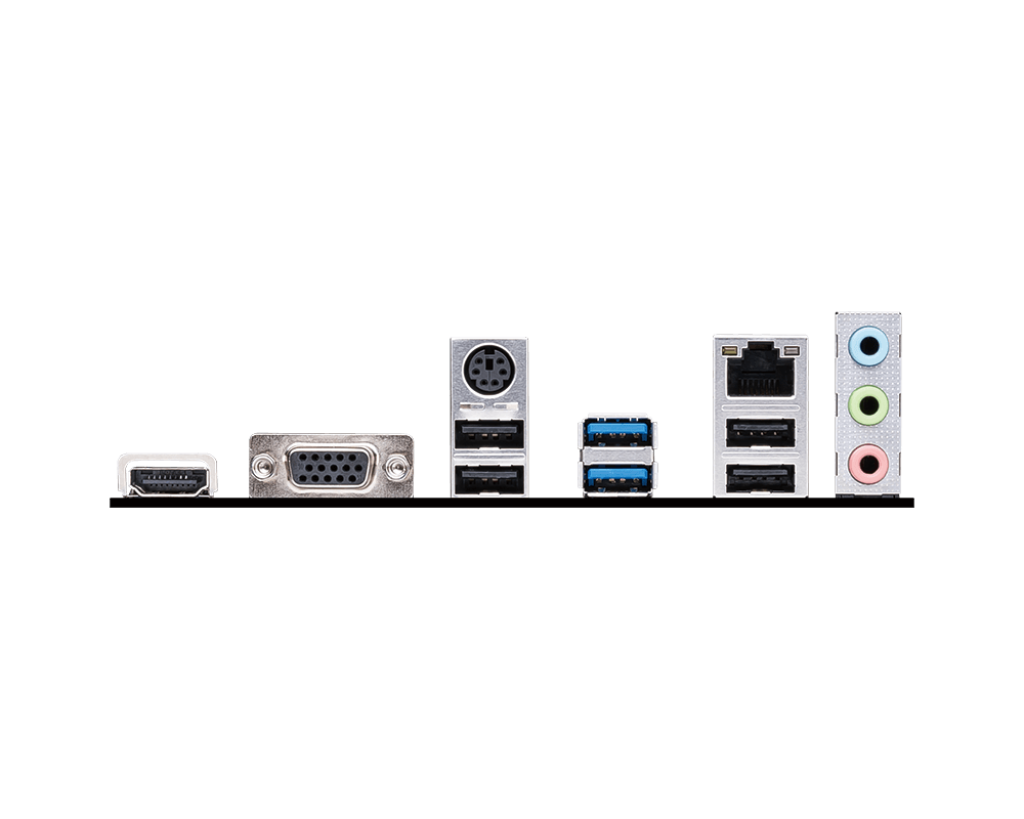

- Rear connectors HDMI, LAN RJ-45, PS/2 (клавиатура/мышь), USB 2.0 Type-A x 4, USB 3.2 Gen1 Type-A x 2, VGA, HDMI, LAN RJ-45, PS/2 (клавиатура/мышь), USB 2.0 Type-A x 4, USB 3.2 Gen1 Type-A x 2, VGA
- Number of USB connectors on the rear panel 6
- Brand MSI
